DisplayPort 2.1 30AWG

     DisplayPort 电缆标准,以优化全尺寸和迷你 DisplayPort 电缆配置,提升其 稳健性,因此可以实现在不降低 UHBR 性能的情况下提升连接质量、增加电缆长度(DP40 电缆超 2 米长,DP80 电缆超 1 米长)。经 VESA 认证的 DP40 电缆支持 UHBR10 链接速率(10 Gbps),四 路运行,提供最大 40 Gbps 的吞吐量;而经 VESA 认证的 DP80 电缆支持 UHBR20 链接速率(20 Gbps),四路运行,提供最大 80 Gbps 的吞吐量。



型号 :

尺寸 :

分享

相关产品

BVR 连接线 印字内容:CCC  A113376  东莞中顶电子有限公司  BVR  **mm   450/750V    (ZA-105℃)



型号 :

尺寸 :


    USB, is abbreviation of"Universal Serial BUS". It is an external bus standard to standardize the connectiondu of computer and peripheral equipment and communications. Is the application interface in the PC fieldtechnology。 USB interface, Plug and Play and hot swap support equipment functions, USB is the end of 1994by Intel, Compaq, IBM, Microsoft and other companies jointly proposed
    USB,是 Universal Serial BUS(通用串行总线)的缩写,是一个外部总线标准,用于规范电脑与外部设备的连接和通讯.是应用在PC领域的接口技术.USB接口支持设备的即插即用和热插拔功能.
   The Third Generation: USB 3.0 (USB 3.1 Gen1)maximum transfer rate of 5Gbps, downward compatible with USB1.1/2.0

第三代:USB3.0(USB 3.1 Gen1)最大传输速率5Gbps,向下兼容USB1.0/1.1/2.0



型号 :

尺寸 :


    USB, is abbreviation of"Universal Serial BUS". It is an external bus standard to standardize the connectiondu of computer and peripheral equipment and communications. Is the application interface in the PC fieldtechnology。 USB interface, Plug and Play and hot swap support equipment functions, USB is the end of 1994by Intel, Compaq, IBM, Microsoft and other companies jointly proposed
    USB,是 Universal Serial BUS(通用串行总线)的缩写,是一个外部总线标准,用于规范电脑与外部设备的连接和通讯.是应用在PC领域的接口技术.USB接口支持设备的即插即用和热插拔功能.
    The first generation: USB 1.0/1.1's maximum transmission rate of 12Mbps。 Introduced in 1996
第一代:USB1.0/1.1的最大传输速率为12Mbps。1996年推出

    The second generation: USB 2.0 transfer rate up to the maximum 480Mbps USB 1.0/1.1 and USB 2.0 interface is compatible
第二代:USB2.0的最大传输速率高达480Mbps.USB1.0/1.1与USB2.0的接口是相互兼容的。



型号 :

尺寸 :


    本光电复合缆由4芯OM3-150M光纤单元、5根电子线单元和一根带地线的屏蔽双绞线、加强芳纶、铝箔屏蔽、铜网编织屏蔽层以及黑色聚氨酯弹性体护套组成,用于HDMI光电复合传输线组件应用。



型号 :
GMJPKUT-4OM3+5AWG28+3TPAWG30-5.0mm-BL
尺寸 :

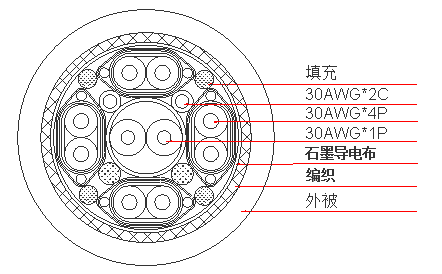

一、线材结构
工段 项目 中顶要求
芯线一 导体 30AWG 1/0.28mm 镀银铜
绝缘材质 FEP
OD 0.52mm
颜色 白色、红色
内被 绝缘材质 FEP
OD 0.93mm*1.44mm
颜色 本色
包带 地线 34AWG  1/0.16mm 镀锡铜
材质1 蓝色铝箔
材质2 热熔麦拉带
颜色 印字区分
芯线二 导体 30AWG 1/0.254mm 镀锡铜
绝缘材质 HDPE
OD 0.68mm
颜色 白色、绿色
包带 地线 30AWG  1/0.254mm 镀锡铜
材质1 蓝色铝箔
材质2 热熔麦拉带
芯线三 导体 30AWG 1/0.254mm 镀锡铜
绝缘材质 HDPE
OD 0.50mm
颜色 黑、红
总绞 填充 棉线
屏蔽 石墨导电布
编织  材质  16*10/0.12mm 镀锡铜
OD  4.0mm
外被  材质  PVC
OD  5.30mm
颜色  黑色



二.物理特性

1. FEP绝缘 insulation:老化前:抗张强度 2500PSIMin   延伸率:200%Min

2. PVC绝缘 insulation:老化前:抗张强度 1500PSIMin   延伸率:100%Min

三.印字内容



四.电气特性

  1. Insertion Loss: 4.6dB/M @10.0GHz No suck out to 20GHz



五.产品符合环保要求



六.包装方式
