USB 3.0(USB 3.1 Gen1)
USB, is abbreviation of"Universal Serial BUS". It is an external bus standard to standardize the connectiondu of computer and peripheral equipment and communications. Is the application interface in the PC fieldtechnology。 USB interface, Plug and Play and hot swap support equipment functions, USB is the end of 1994by Intel, Compaq, IBM, Microsoft and other companies jointly proposed
USB,是 Universal Serial BUS(通用串行总线)的缩写,是一个外部总线标准,用于规范电脑与外部设备的连接和通讯.是应用在PC领域的接口技术.USB接口支持设备的即插即用和热插拔功能.
The Third Generation: USB 3.0 (USB 3.1 Gen1)maximum transfer rate of 5Gbps, downward compatible with USB1.1/2.0
第三代:USB3.0(USB 3.1 Gen1)最大传输速率5Gbps,向下兼容USB1.0/1.1/2.0
|
型号 :
|
|
尺寸 :
|
相关产品
BVR 连接线 印字内容:CCC A113376 东莞中顶电子有限公司 BVR **mm 450/750V (ZA-105℃)
|
型号 :
|
|
尺寸 :
|
SAS(Serial Attached SCSI)即串行连接SCSI,是新一代的SCSI技术,和现在流行的Serial ATA(SATA)硬盘相同,都是采用串行技术以获得更高的传输速度,并通过缩短连结线改善内部空间等。对于裸线,目前主要从电器性能来区分,分为6G和12G,SAS4.0的24G,但是主流生产工艺还是基本一致。对于SAS高频线而言,阻抗、衰减、回路损失,串音等是最重要的几个传输指标, 而SAS高频线的工作频率一般是2.5GHz以上的高频率下.高频低损耗通信电缆一般是由发泡聚乙烯或发泡聚丙烯作为绝缘材料,两根绝缘芯线与两根地线进入绕包机,在绝缘芯线和地线外绕包铝箔及背胶聚酯带,绝缘工序设计及工艺控制,高速传输线的结构、电气性能要求及传输理论。
|
型号 :
|
|
尺寸 :
|
USB, is abbreviation of"Universal Serial BUS". It is an external bus standard to standardize the connectiondu of computer and peripheral equipment and communications. Is the application interface in the PC fieldtechnology。 USB interface, Plug and Play and hot swap support equipment functions, USB is the end of 1994by Intel, Compaq, IBM, Microsoft and other companies jointly proposed
USB,是 Universal Serial BUS(通用串行总线)的缩写,是一个外部总线标准,用于规范电脑与外部设备的连接和通讯.是应用在PC领域的接口技术.USB接口支持设备的即插即用和热插拔功能.
The fourth Generation: USB 3.1(USB 3.1 Gen2) maximum transfer rate of 10Gbps, downward compatible with USB1.1/2.0/3.0
第四代:USB3.1(USB 3.1 Gen2)最大传输速率10Gbps,向下兼容USB1.0/1.1/2.0/3.0
|
型号 :
|
|
尺寸 :
|
USB, is abbreviation of"Universal Serial BUS". It is an external bus standard to standardize the connectiondu of computer and peripheral equipment and communications. Is the application interface in the PC fieldtechnology。 USB interface, Plug and Play and hot swap support equipment functions, USB is the end of 1994by Intel, Compaq, IBM, Microsoft and other companies jointly proposed
USB,是 Universal Serial BUS(通用串行总线)的缩写,是一个外部总线标准,用于规范电脑与外部设备的连接和通讯.是应用在PC领域的接口技术.USB接口支持设备的即插即用和热插拔功能.
The first generation: USB 1.0/1.1's maximum transmission rate of 12Mbps。 Introduced in 1996
第一代:USB1.0/1.1的最大传输速率为12Mbps。1996年推出
The second generation: USB 2.0 transfer rate up to the maximum 480Mbps USB 1.0/1.1 and USB 2.0 interface is compatible
第二代:USB2.0的最大传输速率高达480Mbps.USB1.0/1.1与USB2.0的接口是相互兼容的。
|
型号 :
|
|
尺寸 :
|
| USB3.0(USB 3.1 Gen1)线缆 Super-Speed USB Cable USB3.0 (USB 3.1 Gen1) | ||||||||||||
| Product Description产品说明: | ||||||||||||
| Rated Voltage: 30V | 额定电压:30V | |||||||||||
| Rated Temperature: 80C | 额定温度:80℃ | |||||||||||
| Flammability Test: VW-1 | 燃烧测试:VW-1 | |||||||||||
| Jacket: PVC(UL2725)/FRPE(UL21099) | 外被:PVC(UL2725)/FRPE(UL21099) | |||||||||||
| Print Legend: USB3.0 CABLE | 印字: USB3.0 CABLE | |||||||||||
| Product Application产品应用 | ||||||||||||
| Monitor, Audio Input/Output System, Keyboard, Mouse, Modem, CD-ROM, Scanner, Printer监视器、声音的输入输出系统、键盘、滑鼠、数据机、印表机等。 | ||||||||||||

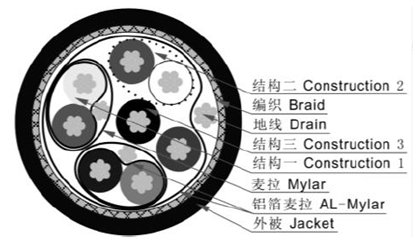

| Product Construction产品结构: | ||||||||||||
| Construction 1 结构一 | Construction 2 结构二 | Construction 3 结构三 | Overall Shied 外屏蔽 |
Jacket 外被 | ||||||||
| AWG线规 | Conductor导体 N/mm |
2P | 1P | 2C | ||||||||
| Material 材质 |
Diameter 线径 |
Shied 外屏蔽 |
Material 材质 |
Diameter 线径 |
Material 材质 |
Diameter 线径 |
Material 材质 |
Diameter 线径 |
||||
| 28 | 7/0.127 | Foam PE | 0.8 | A+D+M | PE | 0.85 | SRPVC | 0.85 | A+D+B | PVC or FRPE | 5.5 | |
| A:AL-Mylar 铝箔麦拉 M:Mylar 麦拉 D:Drain 地线 B:Braid 编织 | ||||||||||||
| Electrical Characteristics 电气特性: | ||||||||||||
| Impedance 差分阻抗(ohm) |
Skew 延时差 |
NEXT 近端串音(dB/Max@GHz) | Attenuation 衰减(dB/m Max.@GHz) | |||||||||
| USB2.0 to 3.0 | USB 3.0 to 3.0 | 0.625 | 1.25 | 2.50 | 5.00 | 7.50 | ||||||
| 0.1-2.5 | 2.5-3.0 | 3.0-7.5 | 0.1-2.5 | 2.5-3.0 | 3.0-7.5 | |||||||
| 90±7 | 15ps/m | -21 | -21~-15 | -15 | -27 | -27~-23 | -23 | -1 | -1.5 | -2.5 | -3.6 | -4.7 |
