DisplayPort 1.2
数位视频标准规范是一个开放式的数字通讯介面,同时可用于内部连接和外部连接。内部连接主要用于比如个人电脑或者监视器。 外接连接包括个人电脑与监视器或者与投影机的连接,电脑与电视,DVD与电视机的连接等。
|
型号 :
|
|
尺寸 :
|
相关产品
USB4,2019年,USB-IF在USB 3.2的基础上整合了雷电3协议(简称TBT3),推出了USB4 Gen 2x2和USB4 Gen 3x2。这次改名和以往不同的是依然保留了USB 3.2的名字。USB4就是在原先USB 3.2传输速度基础上进行了倍增,达到了40Gbps,也就是USB4 Gen 3x2的速度。USB4同时支持USB 3.2和TBT3的传输。总之,USB4=USB 3.2+TBT3。USB4和USB 3.2一样,也有单通道模式和双通道模式。USB4接口和USB 3.2接口一样,都支持搭载USB PD快充协议。
USB4整合了多个协议,可以同时支持更多设备,其中就涉及到带宽的分配,从下图可以看出USB4最多分配22Gbps的带宽用于数据传输,最少18G的带宽用于支持显示。可以连接一个分辨率为5120x2880(5k),刷新率60Hz,色深30bit的显示器,剩下18Gbps的带宽用于传输数据;也可以连接两个分辨率4096x2160(4k),刷新率60Hz,色深30bit的视频,剩下8Gbps的带宽用于传输数据。
|
型号 :
|
|
尺寸 :
|
60227 IEC 53(RVV)系列 印字内容:CCC A113376 东莞中顶电子有限公司 60227 IEC 53(RVV) *x**mm 300/500V IEC 53(RVV) 系列
|
型号 :
|
|
尺寸 :
|
USB, is abbreviation of"Universal Serial BUS". It is an external bus standard to standardize the connectiondu of computer and peripheral equipment and communications. Is the application interface in the PC fieldtechnology。 USB interface, Plug and Play and hot swap support equipment functions, USB is the end of 1994by Intel, Compaq, IBM, Microsoft and other companies jointly proposed
USB,是 Universal Serial BUS(通用串行总线)的缩写,是一个外部总线标准,用于规范电脑与外部设备的连接和通讯.是应用在PC领域的接口技术.USB接口支持设备的即插即用和热插拔功能.
The fourth Generation: USB 3.1(USB 3.1 Gen2) maximum transfer rate of 10Gbps, downward compatible with USB1.1/2.0/3.0
第四代:USB3.1(USB 3.1 Gen2)最大传输速率10Gbps,向下兼容USB1.0/1.1/2.0/3.0
|
型号 :
|
|
尺寸 :
|
USB, is abbreviation of"Universal Serial BUS". It is an external bus standard to standardize the connectiondu of computer and peripheral equipment and communications. Is the application interface in the PC fieldtechnology。 USB interface, Plug and Play and hot swap support equipment functions, USB is the end of 1994by Intel, Compaq, IBM, Microsoft and other companies jointly proposed
USB,是 Universal Serial BUS(通用串行总线)的缩写,是一个外部总线标准,用于规范电脑与外部设备的连接和通讯.是应用在PC领域的接口技术.USB接口支持设备的即插即用和热插拔功能.
The Third Generation: USB 3.0 (USB 3.1 Gen1)maximum transfer rate of 5Gbps, downward compatible with USB1.1/2.0
第三代:USB3.0(USB 3.1 Gen1)最大传输速率5Gbps,向下兼容USB1.0/1.1/2.0
|
型号 :
|
|
尺寸 :
|
| DisplayPort 数位视频介面线缆 | |||||||
| Product Introduction 产品介绍: | |||||||
| The Display Port standard specifications an open digital communications interface for use in both internal connections,such as interfaces within a PC or monitor, and external display connections, including interfaces between a PC and monitor or projector, between a PC and TV, or between a device such as a DVD player and TV display. 数位视频标准规范是一个开放式的数字通讯介面,同时可用于内部连接和外部连接。内部连接主要用于比如个人电脑或者监视器。 外接连接包括个人电脑与监视器或者与投影机的连接,电脑与电视,DVD与电视机的连接等。 |
|||||||
| Product Application 产品应用: | |||||||
| It is designed to serve as a broadly deployable connectivity solution for PCs, monitors, panels, projectors, and high definition content applications. 设计用于多种应用场合,可用于连接PC、显示器、高清晰电视、投影机及高清晰内容应用。 |
|||||||
| Product Description 产品说明: | |||||||
| Rated Voltage: 30V | 额定电压:30V | ||||||
| Rated Temperature: 80C | 额定温度:80℃ | ||||||
| Flammability Test: VW-1 | 燃烧测试:VW-1 | ||||||
| Jacket: PVC(UL20276)/FRPE(UL21100) | 外被:PVC(UL20276)/FRPE(UL21100) | ||||||
| Print Legend: HIGH SPEED HDMI (WITH ETHERNET) | 印字: HIGH SPEED HDMI CABLE(WITH ETHERNET) | ||||||

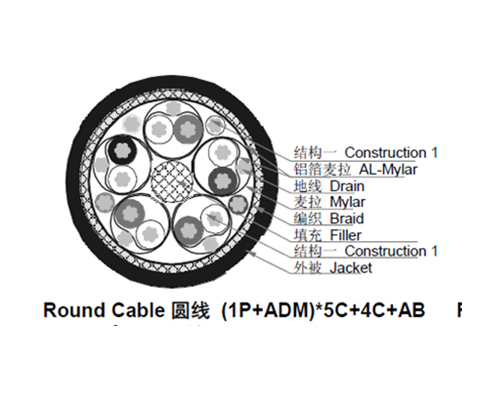

| Product Construction 产品结构: | |||||||
| AWG 线规 |
Conductor 导体 |
Round Cable 圆线 | |||||
| Construction 1 结构一 |
Construction 2 结构二 |
Overall Shield 外屏蔽 |
Jacket 外被 |
||||
| 5P | 4C | ||||||
| Material 材质 |
Shield 屏蔽 |
Material 材质 |
Material 材质 |
Diameter 线径 |
|||
| 32 | 7/0.08 | Foam PE |
A+D+M | PP/PE | A+B | PVC | 6.00 |
| 30 | 7/0.10 | 6.50 | |||||
| 28 | 7/0.127 | 7.30 | |||||
| 26 | 7/0.16 | 8.50 | |||||
| 24 | 7/0.203 | 9.50 | |||||
| A:AL-Mylar 铝箔麦拉 M:Mylar 麦拉 D:Drain 地线 B:Braid 编织 | |||||||
| Electrical Characteristics 电气特性: | |||||||
| Impedance 阻抗(ohm) |
Delay 延时(ns/m) |
FEXT 远端串音 dB/Max |
NEXT 近端串音 dB/Max |
Return Loss回损 dB/Max |
Delay Skew延时差 | ||
| Intra 对内 |
|||||||
| 100±10 | 5.2 | -26 | -26 | -15 | 50ps | ||
