| HDMI CABLE 高清晰多媒体界面用线缆 | ||||||||||||
| Product Introduction 产品介绍: |
||||||||||||
| Based on DVI, HDMI was developed. It is suited for digital television, DVD play, as other digital audio visual products. It can transmit high analytic video and multi-track audio materials in digital form with highquality。 And the highest transmission speed is 10.2Gbps. In the cable, the audio and video signals are put intoone cable. Therefore, it does not need many cables like the audiovisual cable with analogous method HDMIhas adopted small interface which is suited for digital portable. In addition, it still support the standard 5specifications, the EIA/CEA861x of Consumer Electronics Association in home appliances field HDMI基于DVI( Digital Visual Interface)制定,适合在数码电视、DV播放机、机顶盒以及其他数码视听产品中使用。在保持高品质的情況下能夠以数码形式传输未经压缩的高解析度视频和多声道音频资料。最高资料传输速度为5Gbps。由于在该规格中将音频和视频信号均载入到一根电缆线上,因此不像现有类比方式的视听缆线那样需要拉多条线。HDMI中采用了适合在数码可携式摄像机上使用的小型介面。另外,还支援家电产品业內团体 Consumer Electronics Association(CEA)的标准规格EIA/CEA-861x。 |
||||||||||||
| Product Application 产品应用: | ||||||||||||
| PDP TV、LCD、HDTv、RPTV、DVD.etc等离子电视、液晶电视、高清晰数字电视、背投、DVD等 | ||||||||||||
| Cable Types线缆类型: | ||||||||||||
| Product Description产品说明: | ||||||||||||
| Rated Voltage: 30V | 额定电压:30V | |||||||||||
| Rated Temperature: 80C | 额定温度:80℃ | |||||||||||
| Flammability Test: VW-1 | 燃烧测试:VW-1 | |||||||||||
| Jacket: PVC(UL20276)/FRPE(UL21100) | 外被:PVC(UL20276)/FRPE(UL21100) | |||||||||||
| Print Legend: HIGH SPEED HDMI CABLE(WITH ETHERNET) | 印字: HIGH SPEED HDMI CABLE(WITH ETHERNET) | |||||||||||

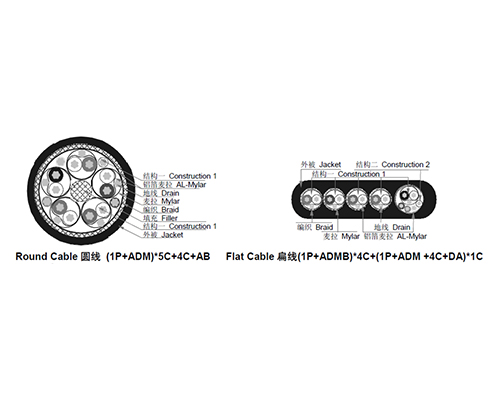

| HDMI 1.4 CABLE | ||||||||||||
| Product Construction产品结构: | ||||||||||||
| AWG 线规 |
Conductor 导体 |
Round Cable 圆线 | Flat Cable 扁线 | |||||||||
| Construction 1 结构一 |
Construction 2 结构二 |
Overall Shield 外屏蔽 |
Jacket 外被 |
Construction 1 结构一 |
Construction 2 结构二 |
Jacket 外被 |
||||||
| 5P | 4C | 5P | 4C | |||||||||
| Material 材质 |
Shield 屏蔽 |
Material 材质 |
Material 材质 |
Diameter 线径 |
Material 材质 |
Shield 屏蔽 |
Material 材质 |
Shield 屏蔽 |
Diameter 线径 |
|||
| 32 | 7/0.08 | Foam PE |
A+D+M | PP/PE | A+B | PVC | 5.00 | FoamPE | A+D+M | PP/PE | D+A | 2.5*11.0 |
| 30 | 7/0.10 | 6.00 | 3.0*12.5 | |||||||||
| 28 | 7/0.127 | 7.30 | 3.7*15 | |||||||||
| 26 | 7/0.16 | 8.50 | 3.9*17.0 | |||||||||
| 24 | 7/0.203 | 9.50 | 4.2*18.0 | |||||||||
| A:AL-Mylar 铝箔麦拉 M:Mylar 麦拉 D:Drain 地线 B:Braid 编织 | ||||||||||||
| Electrical Characteristics 电气特性: | ||||||||||||
| TMDS Parameters |
Impedance 阻抗(ohm) |
Delay 延时(ns/m) |
FEXT 远端串音 dB/Max |
Delay Skew延时差 | Attenuation 衰减(Db/cable Max) | |||||||
| Intra 对内 |
Inter 对间 |
300KHz~ 825MHz |
825MHz~ 2475MHz |
2475MHz~ 4125MHz |
4125MHz~ 5100MHz |
|||||||
| 100±10 | 5.2 | -20 | 112ps | 1.78ns | -5 | -12 | -20 | -25 | ||||
| HEAC Parameters |
Impedance 阻抗(ohm) |
Common Impedance 同模阻抗(ohm) |
/ | Delay Skew延时差 | Attenuation 衰减(Db/cable Max) | |||||||
| Intra 对内 |
300KHz~ 10MHz |
10MHz~ 100MHz |
100MHz~ 200MHz |
/ | ||||||||
| 100±10 | 30±6 | / | 111ps | -1.6 | -5 | -7.1 | / | |||||
