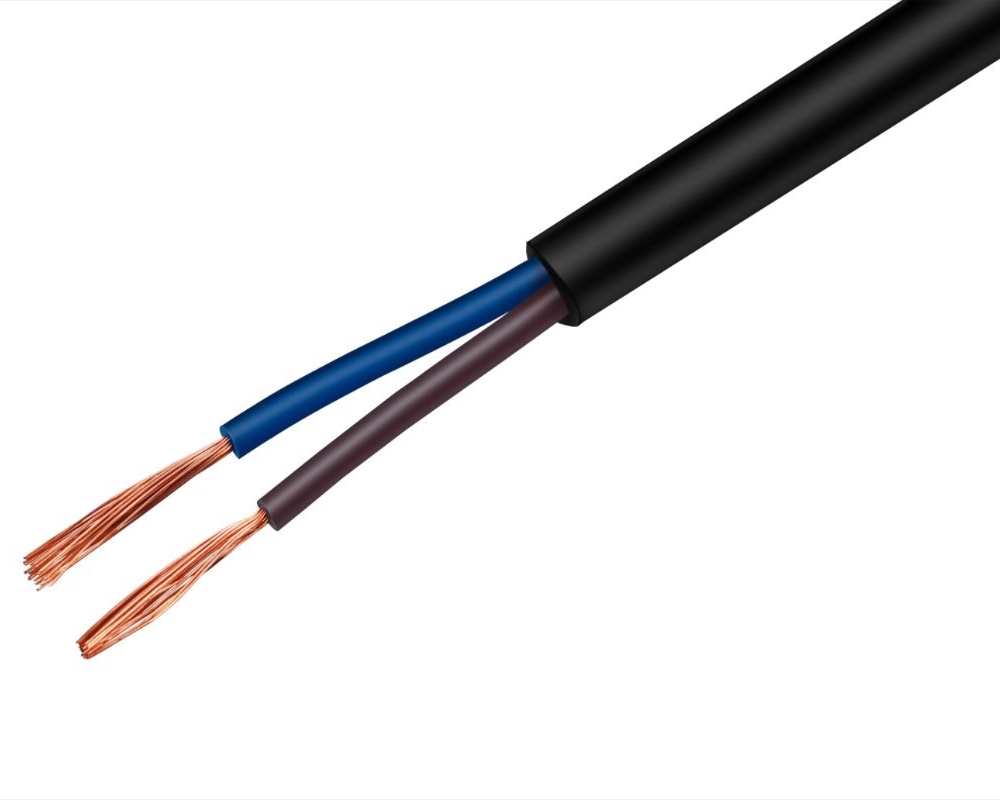

UL2725 多芯电脑线
UL2725 多芯电脑线 UL2725 Multi-conductor Computer Cable印字内容:E322376 兄 AWM 2725 **AWG 80℃ 30V VW-1 C兄 AWM I
|
型号 :
|
|
尺寸 :
|
相关产品
USB4,2019年,USB-IF在USB 3.2的基础上整合了雷电3协议(简称TBT3),推出了USB4 Gen 2x2和USB4 Gen 3x2。这次改名和以往不同的是依然保留了USB 3.2的名字。USB4就是在原先USB 3.2传输速度基础上进行了倍增,达到了40Gbps,也就是USB4 Gen 3x2的速度。USB4同时支持USB 3.2和TBT3的传输。总之,USB4=USB 3.2+TBT3。USB4和USB 3.2一样,也有单通道模式和双通道模式。USB4接口和USB 3.2接口一样,都支持搭载USB PD快充协议。
USB4整合了多个协议,可以同时支持更多设备,其中就涉及到带宽的分配,从下图可以看出USB4最多分配22Gbps的带宽用于数据传输,最少18G的带宽用于支持显示。可以连接一个分辨率为5120x2880(5k),刷新率60Hz,色深30bit的显示器,剩下18Gbps的带宽用于传输数据;也可以连接两个分辨率4096x2160(4k),刷新率60Hz,色深30bit的视频,剩下8Gbps的带宽用于传输数据。
|
型号 :
|
|
尺寸 :
|
USB, is abbreviation of"Universal Serial BUS". It is an external bus standard to standardize the connectiondu of computer and peripheral equipment and communications. Is the application interface in the PC fieldtechnology。 USB interface, Plug and Play and hot swap support equipment functions, USB is the end of 1994by Intel, Compaq, IBM, Microsoft and other companies jointly proposed
USB,是 Universal Serial BUS(通用串行总线)的缩写,是一个外部总线标准,用于规范电脑与外部设备的连接和通讯.是应用在PC领域的接口技术.USB接口支持设备的即插即用和热插拔功能.
The fourth Generation: USB 3.1(USB 3.1 Gen2) maximum transfer rate of 10Gbps, downward compatible with USB1.1/2.0/3.0
第四代:USB3.1(USB 3.1 Gen2)最大传输速率10Gbps,向下兼容USB1.0/1.1/2.0/3.0
|
型号 :
|
|
尺寸 :
|
USB, is abbreviation of"Universal Serial BUS". It is an external bus standard to standardize the connectiondu of computer and peripheral equipment and communications. Is the application interface in the PC fieldtechnology。 USB interface, Plug and Play and hot swap support equipment functions, USB is the end of 1994by Intel, Compaq, IBM, Microsoft and other companies jointly proposed
USB,是 Universal Serial BUS(通用串行总线)的缩写,是一个外部总线标准,用于规范电脑与外部设备的连接和通讯.是应用在PC领域的接口技术.USB接口支持设备的即插即用和热插拔功能.
The Third Generation: USB 3.0 (USB 3.1 Gen1)maximum transfer rate of 5Gbps, downward compatible with USB1.1/2.0
第三代:USB3.0(USB 3.1 Gen1)最大传输速率5Gbps,向下兼容USB1.0/1.1/2.0
|
型号 :
|
|
尺寸 :
|
USB, is abbreviation of"Universal Serial BUS". It is an external bus standard to standardize the connectiondu of computer and peripheral equipment and communications. Is the application interface in the PC fieldtechnology。 USB interface, Plug and Play and hot swap support equipment functions, USB is the end of 1994by Intel, Compaq, IBM, Microsoft and other companies jointly proposed
USB,是 Universal Serial BUS(通用串行总线)的缩写,是一个外部总线标准,用于规范电脑与外部设备的连接和通讯.是应用在PC领域的接口技术.USB接口支持设备的即插即用和热插拔功能.
The first generation: USB 1.0/1.1's maximum transmission rate of 12Mbps。 Introduced in 1996
第一代:USB1.0/1.1的最大传输速率为12Mbps。1996年推出
The second generation: USB 2.0 transfer rate up to the maximum 480Mbps USB 1.0/1.1 and USB 2.0 interface is compatible
第二代:USB2.0的最大传输速率高达480Mbps.USB1.0/1.1与USB2.0的接口是相互兼容的。
|
型号 :
|
|
尺寸 :
|
| UL2725 多芯电脑线 UL2725 Multi-conductor Computer Cable | |||||||||
| 印字内容:E322376 兄 AWM 2725 **AWG 80℃ 30V VW-1 C兄 AWM I/II A/B 80℃ 30V FT1 HiBest | |||||||||
| 产品说明 Product Description: | |||||||||
| 额定温度:60℃ or 80℃ | Rated temperature:60℃ or 80℃ | ||||||||
| 额定电压:30V | Rated voltage:30V | ||||||||
| 标准:UL758,UL1581及CSA C22.2 No.210 | Standard:UL758,UL1581&CSA C22.2 No.210 | ||||||||
| 导体使用绞合裸铜或镀锡铜 | Stranded tinned or bare copper conductor | ||||||||
| 无铅聚氯乙稀绝缘 | Colour-coded PVC insulation | ||||||||
| 通过UL VW-1及CSA FT1 垂直耐燃测试 | Passes UL VW-1&CSA FT1 vertical flame test | ||||||||
| 产品应用 Product Application: | |||||||||
| 用于2类系统及视听电子设备内部连接线及外部线 | For lnternal or external Wiring of Class systems equipment and electronic equipment | ||||||||
| 产品结构 Product Construction: | |||||||||
| 芯线 Cores |
导体 Conductor | 绝缘 Insulation | 屏蔽Shield | 护套Jacket | |||||
| 规格 AWG |
结构Construction | 外径 Diameter |
外径 Diameter |
地线 Drain Wire |
包覆 Wrap |
结构 Construction |
皮厚 Thickness |
外径 Diameter |
|
| 2 | 30 | 7/0.10 | 0.30 | 0.80 | 7/0.10 | AL-Mylar | 16*4/0.10 | 0.23Min.AVG. 0.18Min. |
3.00 |
| 28 | 7/0.127 | 0.38 | 0.85 | 7/0.127 | AL-Mylar | 16*4/0.10 | 3.20 | ||
| 26 | 7/0.16 | 0.48 | 1.00 | 7/0.16 | AL-Mylar | 16*4/0.10 | 3.40 | ||
| 24 | 7/0.203 | 0.62 | 1.10 | 7/0.203 | AL-Mylar | 16*4/0.10 | 3.60 | ||
| 3 | 28 | 7/0.127 | 0.38 | 0.85 | 7/0.127 | AL-Mylar | / | 3.00 | |
| 28 | 7/0.127 | 0.38 | 0.85 | 7/0.127 | AL-Mylar | 16*4/0.10 | 3.50 | ||
| 4 | 26 | 7/0.127 | 0.48 | 0.85 | / | AL-Mylar | 16*5/0.10 | 4.00 | |
| 26 | 7/0.127 | 0.48 | 0.85 | / | AL-Mylar | / | 3.50 | ||
| 6 | 24 | 7/0.127 | 0.62 | 1.10 | / | AL-Mylar | / | 4.50 | |
| 8 | 28 | 7/0.127 | 0.38 | 0.85 | / | AL-Mylar | 16*6/0.10 | 4.50 | |
